234 Series Lug & Ring Terminal Insulator

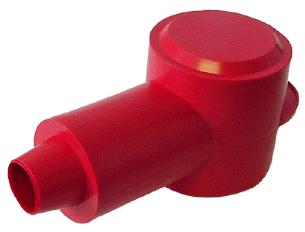

234N3V02 Shown

• Terminal Outside Diameter: 34.8 mm
• Post Height: 40.64 mm
• Inside Grip Diameter: 22.86 mm
• Cable Entry: 1, 2, 3, 4
• Terminal Length:
  • Normal: 50.8 mm
  • Extended: 66.8 mm
• Nominal Material Thickness: 2.54 mm

Part	Term Len	Cable Entry	Color		Part	Term Len	Cable Entry	Color
234N1V02	50.8 mm	.8 - 5 mm2	Red		234E1V02	66.8 mm	.8 - 5 mm2	Red
234N1V14	50.8 mm	.8 - 5 mm2	Black		234E1V14	66.8 mm	.8 - 5 mm2	Black
234N2V02	50.8 mm	8 - 32 mm2	Red		234E2V02	66.8 mm	8 - 32 mm2	Red
234N2V14	50.8 mm	8 - 32 mm2	Black		234E2V14	66.8 mm	8 - 32 mm2	Black
234N3V02	50.8 mm	32 - 62 mm2	Red		234E3V02	66.8 mm	32 - 62 mm2	Red
234N3V14	50.8 mm	32 - 62 mm2	Black		234E3V14	66.8 mm	32 - 62 mm2	Black
234N4V02	50.8 mm	81 - 103 mm2	Red		234E4V02	66.8 mm	81 - 103 mm2	Red
234N4V14	50.8 mm	81 - 103 mm2	Black		234E4V14	66.8 mm	81 - 103 mm2	Black
Normal Length					Extended Length
